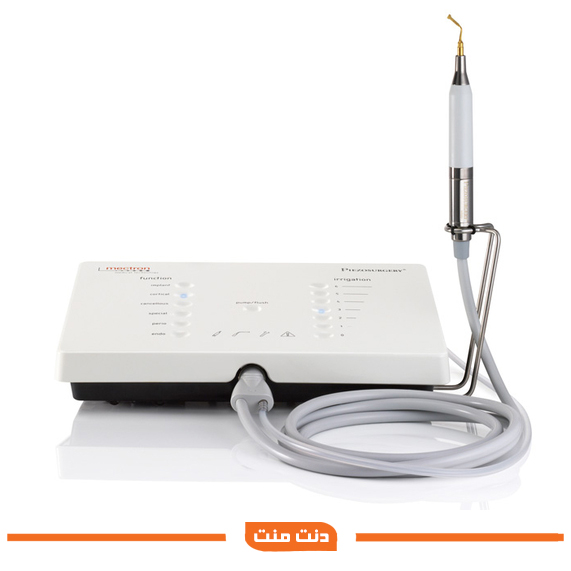

دستگاه پیزو سرجری مکترون سفید MECTRON PIEZOSURGERY white
Device compliant to Dir. 93/42/CEE: | Class II a |
Classification as per EN 60601-1: | I Applied part type B (handpiece, insert) IP 20 (device) IP X8 (foot pedal) |
Device for intermittent operation: | 60sec. ON – 30sec. OFF with irrigation 30sec. ON – 120sec. OFF without irrigation (ENDO,PERIO) |
Power supply voltage: | 100-240 Vac 50/60 Hz |
Max. power absorbed: | 120 VA |
Fuses: | Type 5 x 20 mm T 2AL, 250V |
Operating frequency: | Automatic scan From 24 KHz to 36 KHz |

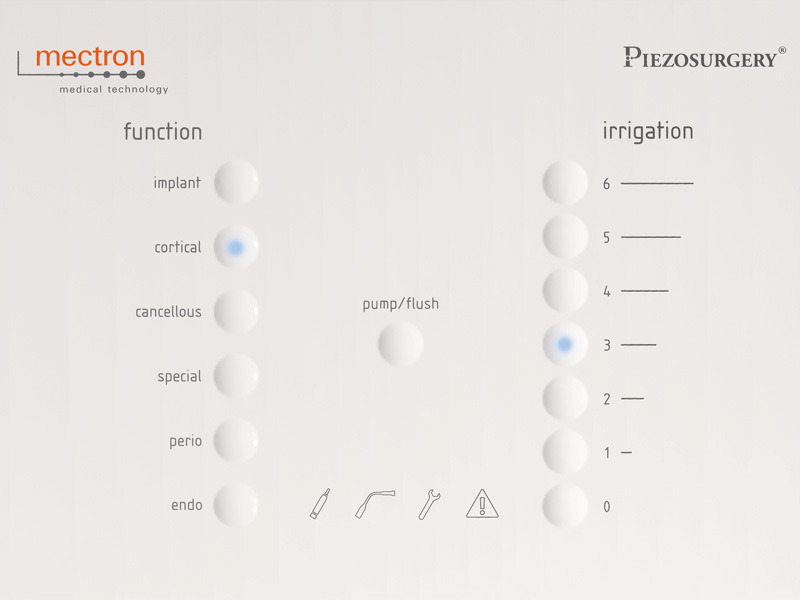

Power types: | ENDO PERIO SPECIAL CANCELLOUS CORTICAL IMPLANT |
Peristaltic pump capacity: | Adjustable on the touch screen: ENDO / PERIO – 7 flow levels: from 0 to 6 (from 0 to approximately 75ml/min) SPECIAL / CANCELLOUS / CORTICAL / IMPLANT 6 capacity levels: from 1 to 6 (from 8 to approximately 75ml/min) |
LED system of the handpiece (optional): | LED system of the handpiece switches on as soon as the device starts to operate and switches off 3 seconds after the foot pedal is released |
Protections of the APC circuit: | No handpiece detected Cord interruption Insert not tightened correctly or broken |
Operating conditions: | from +10°C to +40°C Relative humidity from 30% to 75% Pressure of air P: 800hPa/1060hPa |
Transport and storage conditions: | from -10°C to +70°C Relative humidity from 10% to 90% Pressure of air P: 500hPa/1060hPa |
Peristaltic pump tube: | It is advisable not to exceed 8 sterilization cycles |
Weight | 3,2 Kg |
Size (L -W – H) | 300 x 250 x 95 mm |
Warranty | device 2 years; handpiece and handpiece cord 1 year |
